Mllse G3 Mini PC Intel N100

Overview of the Mllse G3 Mini PC#

The Mllse G3 Mini PC is a compact and efficient device powered by an Intel N100 CPU, making it an excellent choice for a home server or lightweight computing tasks. Below is a detailed look at its hardware and design.

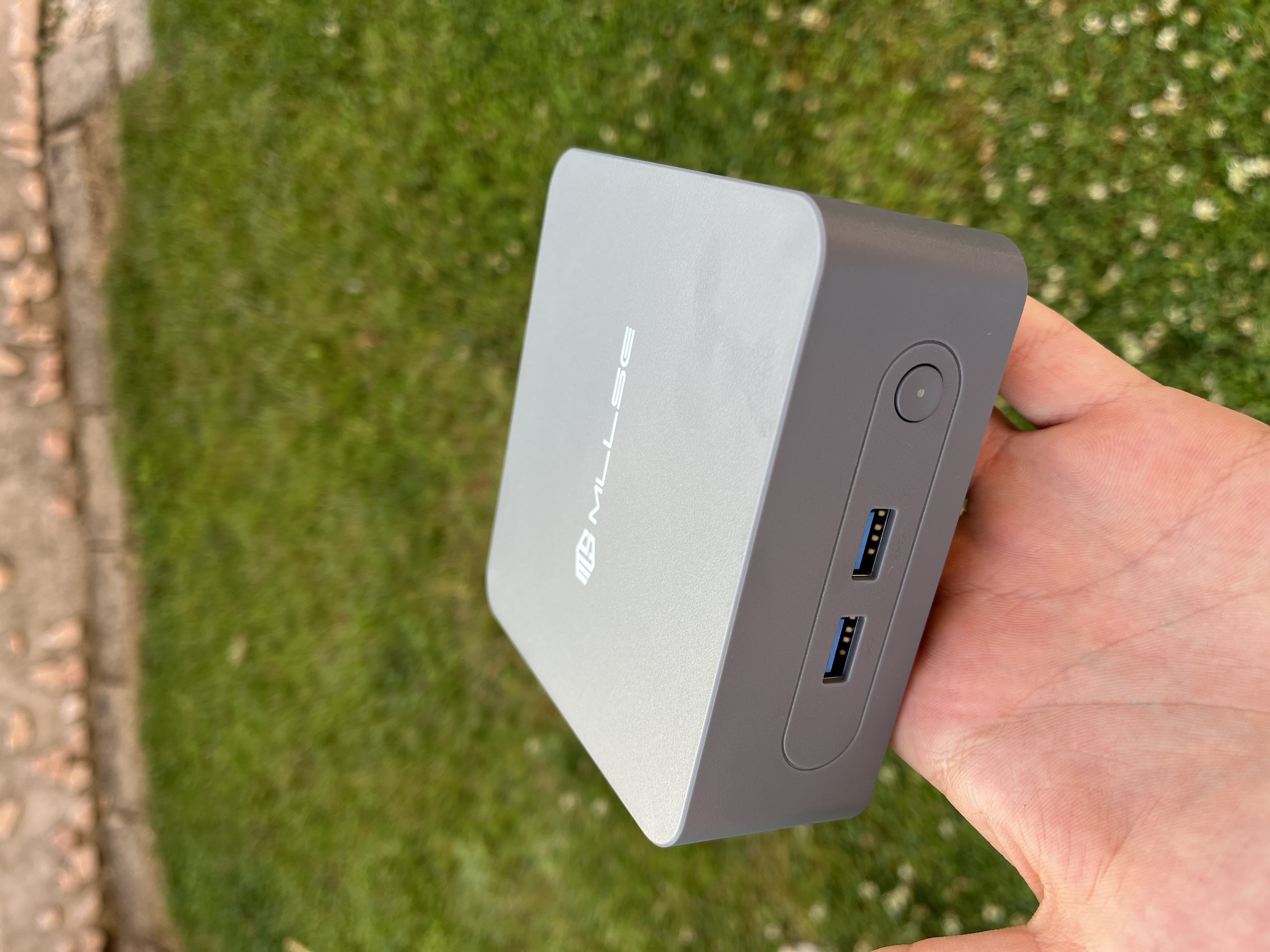

Mllse G3 Mini PC Front View

Unboxing and Hardware Specifications

In the box, the PC comes with:

  • A power supply.
  • A metal plate for mounting on a VESA mount behind a monitor.

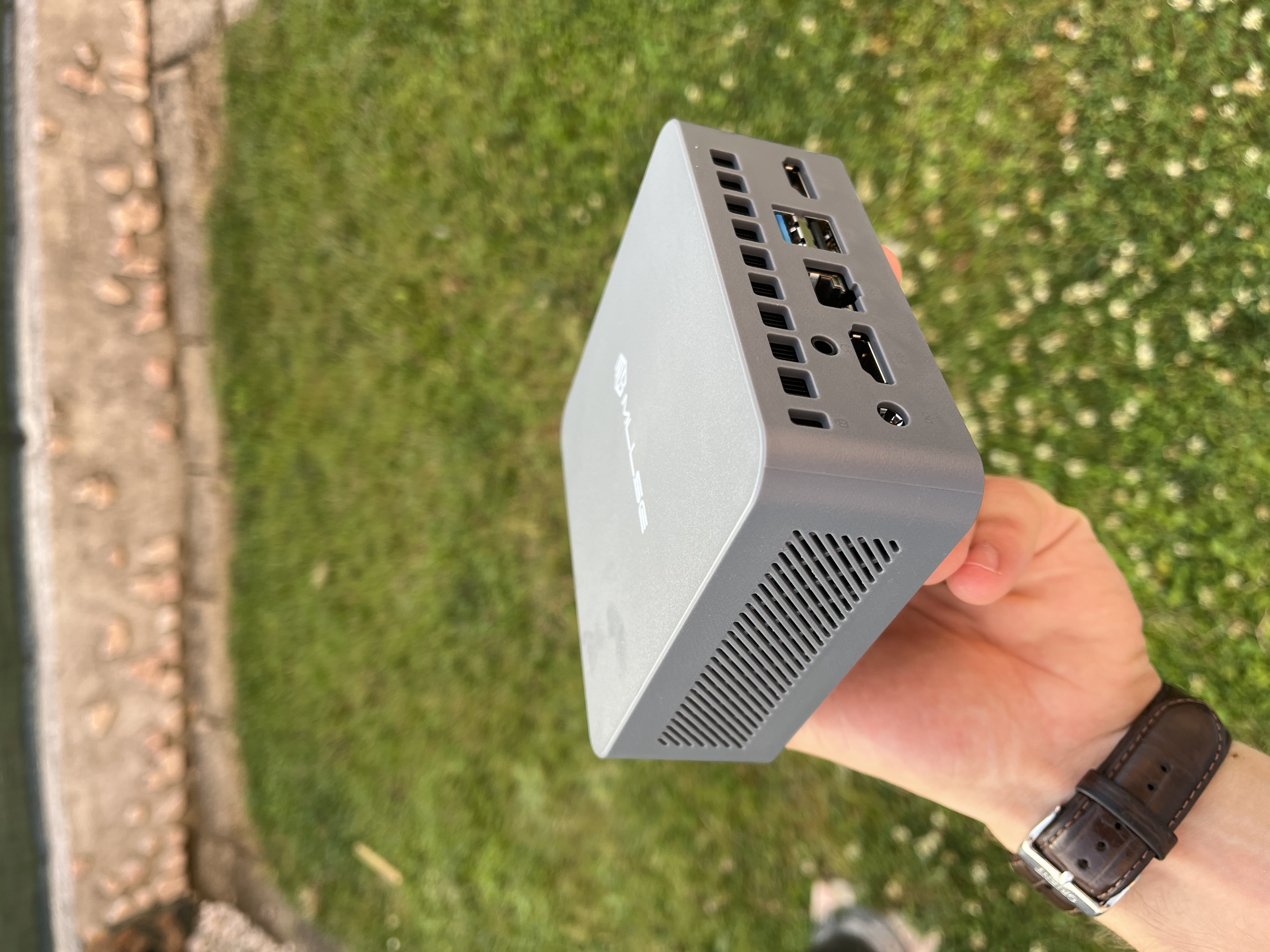

Mllse G3 Mini PC Side View

Design and Build:

  • The PC features a plastic case with four rubber feet for stability.
  • The four screws, once removed, provide access to the motherboard.

Internal Components:

  • RAM: A single RAM slot (DDR4 2666MHz 8GB by default), as the Intel N100 only supports single-channel memory.
  • Storage: Two SSD slots:
    • One M.2 SATA slot.
    • One standard M.2 slot (NVMe compatible).
    • A 256GB SSD is pre-installed, equipped with a metal plate and thermal pad for heat dissipation.
  • Cooling: A single fan and a CPU heatsink are located under the motherboard. The system is designed to be very quiet, and the fan is rarely audible during operation.

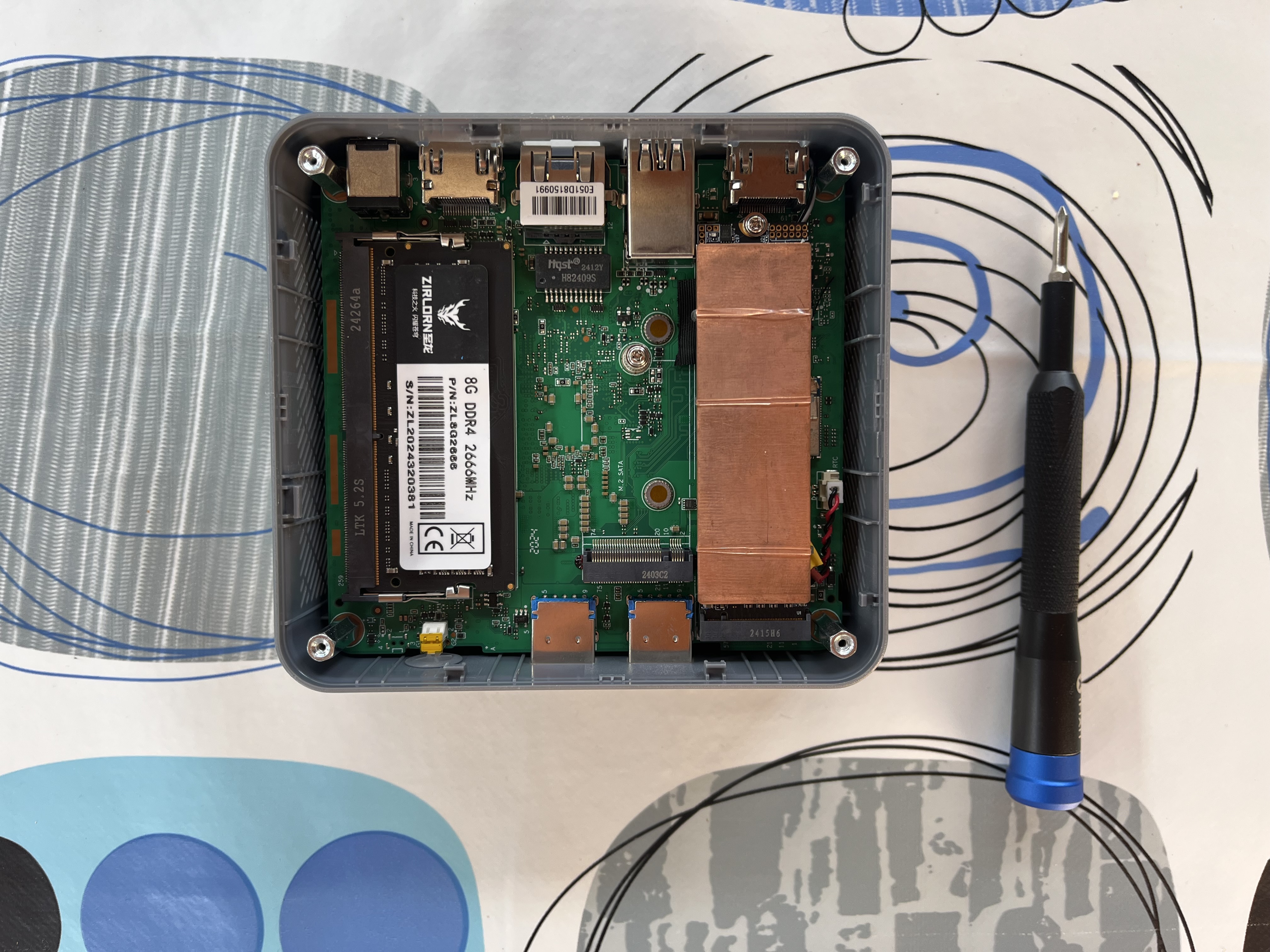

Inside View of Mllse G3 Mini PC

Ideal Use Cases

The Mllse G3 Mini PC is well-suited for:

  • Home servers running ZimaOS, CasaOS, Umbrel, or Proxmox.
  • Lightweight computing tasks, media centers, or office work.

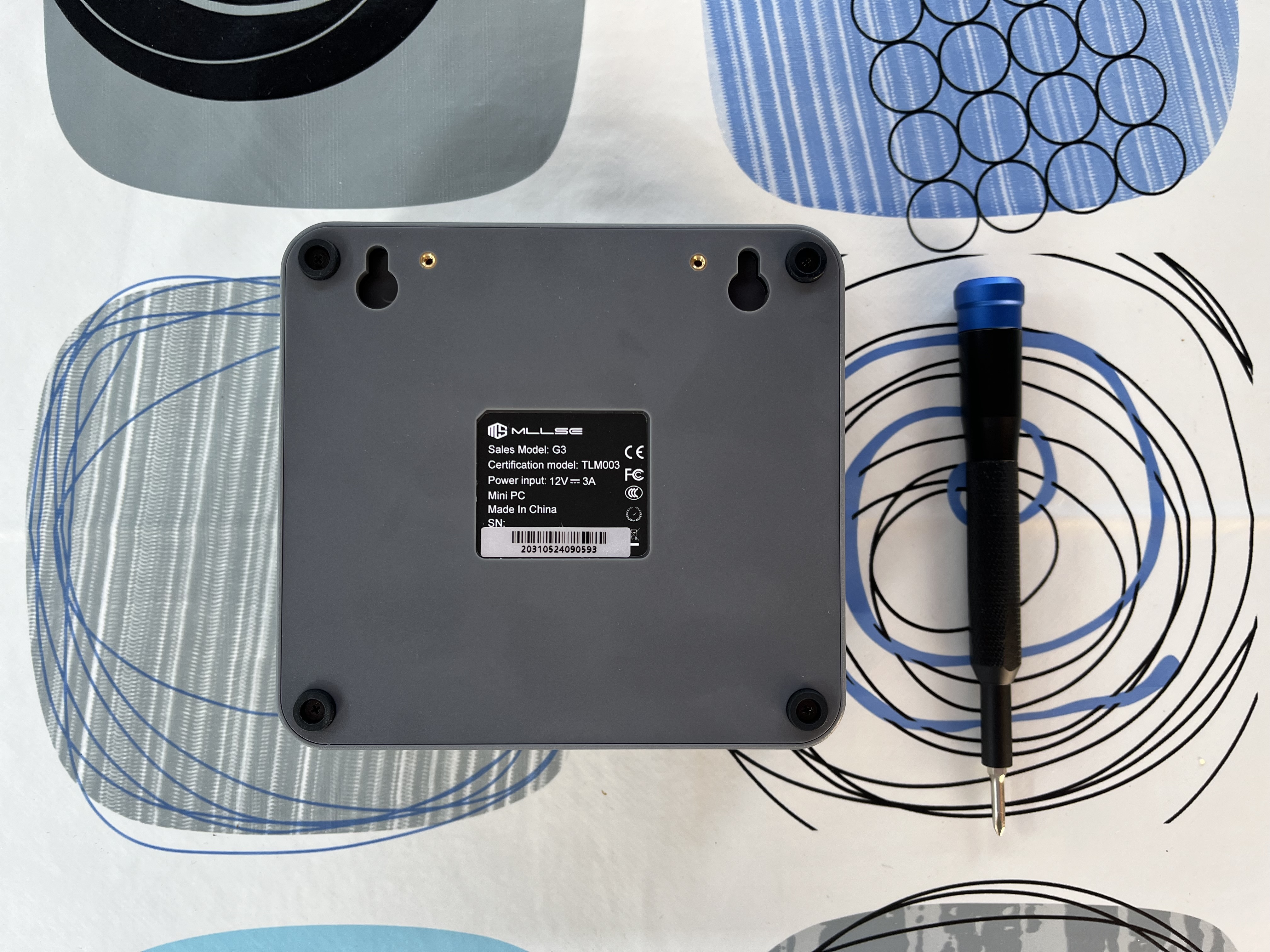

Back View of Mllse G3 Mini PC

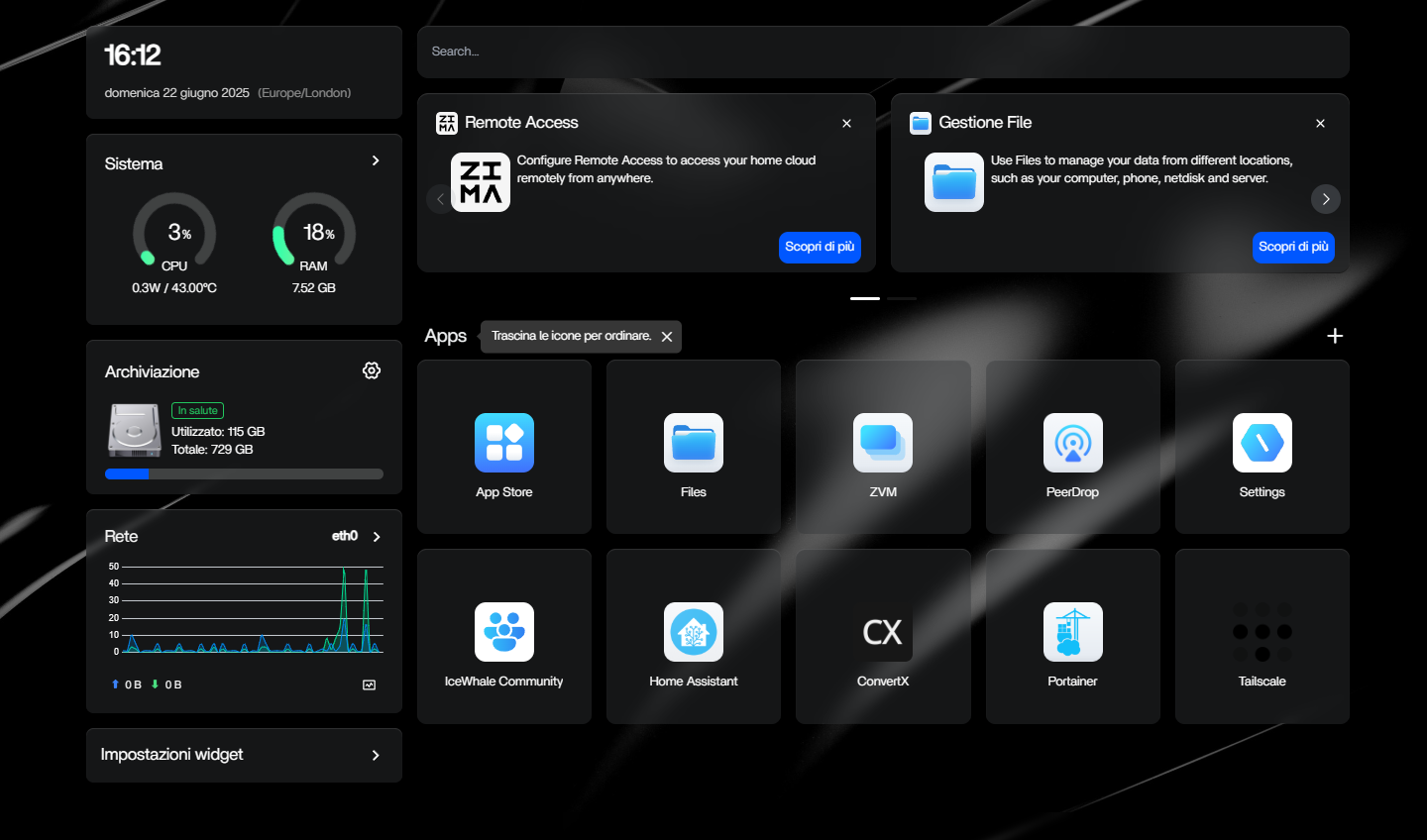

ZimaOS Running on Mllse G3
